제품 소개

PRODUCT INFO



pH/ORP

Made in USA

Analog

 USA

GT-DJ
Application
고압력, 폐수, 공정수
Measurement Range
pH: 0...14 pH / ORP: -1500...1500 mV (Optional)
Pressure Range
0...34.4 bar @25 °C
Temperature Range
5...135 °C
Electrolyte
Saturated KCl / AgCl (Rear Chamber), KCl / AgCl-free (Front Chamber)
Response Time (@25°C)
95 % of reading in 10 sec
Diaphragm
Teflon



OPS31
Application
수영장, 정수 및 실험실
Measurement Range
pH: 0...14 pH
Pressure Range
≤ 0.6 bar, HD Version up to 3 bar
Temperature Range
-15...135 °C
Electrolyte
Gel 3 mol KCl, AgCl-free
Response Time (@25°C)
-
Diaphragm
Ceramic
OPS71
Application
정수, 공정수, 냉각수
Measurement Range
pH: 0...14 pH
Pressure Range
0...14 bar
Temperature Range
-15...140 °C
Electrolyte
3 mol KCl Gel, AgCI-free
Response Time (@25°C)
98 % of reading in 30 sec
Diaphragm
Ceramic
OPS72
Application
정수처리장, 공정수, 냉각수
Measurement Range
ORP: -1500...1500 mV
Pressure Range
0...11 bar
Temperature Range
-15...140 °C
Electrolyte
3 mol KCl Gel, AgCI-free
Response Time (@25°C)
98 % of reading in 30 sec
Diaphragm
Ceramic
OPS91
Application
폐수, 공정수
Measurement Range
pH: 0...14 pH
Pressure Range
0...13 bar
Temperature Range
0...110 °C
Electrolyte
Polymer with Cationic Cross-Linked and Stabilized
Response Time (@25°C)
95 % of reading in 30 sec
Diaphragm
Open Aperture Junction

Digital

 USA

OPS11D
Application
HF 불산 (FA) , 케미칼,  폐수,  보일러 급수, 냉각수, 식수
Measurement Range
pH: 0...12 pH (AA) / 0...10 pH (FA)
Pressure Range
0...16 bar (AA) /  0...6 bar (FA)
Temperature Range
-15...135 °C (AA) / 0...70 °C (FA)
Electrolyte
Advanced Gel
Response Time (@25°C)
-
Diaphragm
Teflon
OPS12D
Application
제지산업, 플라스틱케미칼, 발전소, 식품산업, 수처리, 음용수, 냉각수
Measurement Range
-1500...1500 mV
Pressure Range
0...16 bar
Temperature Range
-15...135 °C
Electrolyte
Advanced Gel
Response Time (@25°C)
-
Diaphragm
PTFE Ring
OPS31D
Application
음용수, 수영장, 잔류염소 측정을 위한 pH 보정
Measurement Range
pH: 0...14 pH
Pressure Range
≤ 0.6 bar, HD version up to 3 bar
Temperature Range
-15...130 °C
Electrolyte
Gel 3 mol KCl, AgCl-free
Response Time (@25°C)
-
Diaphragm
Ceramic
OPS71D
Application
케미칼, 제약, 식품, 발효기, 생명공학
Measurement Range
pH: 0...14 pH (Optional)
Pressure Range
0...14 bar (Optional)
Temperature Range
0...140 °C (Optional)
Electrolyte
3 M KCl, Acrylamide-Free, Non-Cytotoxic
Diaphragm
Ceramic
Certification
ATEX, FM 및 CSA 승인
OPS72D
Application
케미칼, 제약, 식품, 발효기, 생명공학
Measurement Range
-1500...1500 mV
Pressure Range
0...11 bar
Temperature Range
-15...140 °C (Option)
Electrolyte
Gel Acrylamide-Free, Non-Cytotoxic
Diaphragm
Ceramic
Certification
ATEX, FM 및 CSA 승인
OPS91D
Application
펄프 및 제지 산업, 배기가스 세척, 오염된 매체
Measurement Range
pH: 0...14 pH
Pressure Range
0...14 bar
Temperature Range
0...110 °C
Electrolyte
Gel
Diaphragm
Open Aperture Junction
Certification
ATEX, FM 및 CSA 승인

Transmitter

 Korea

ITPR-100/D
Application
공정수, 폐수, 정수, 재이용수
Measurement Range

pH: -2.00...16.00

ORP: -1999...1999 mV / Temp. -30...130 ℃

Resolution
pH: 0.01 pH / ORP: 1.0 mV / Temp.: 0.1 ℃
Ambient Temperature
0...50 ℃
Storage Temperature
-20...70°C
Analog Output

Analog 1: Isolated DC 0/4~20mA Main Measurement, max load 500Ω

Analog 2: Isolated DC 0/4~20mA Temperature, max 500Ω (EC-4110) (ITCP-120)

Serial Interface
RS-485 (MODBUS RTU or ASCII) (ITCP-120D)

 USA

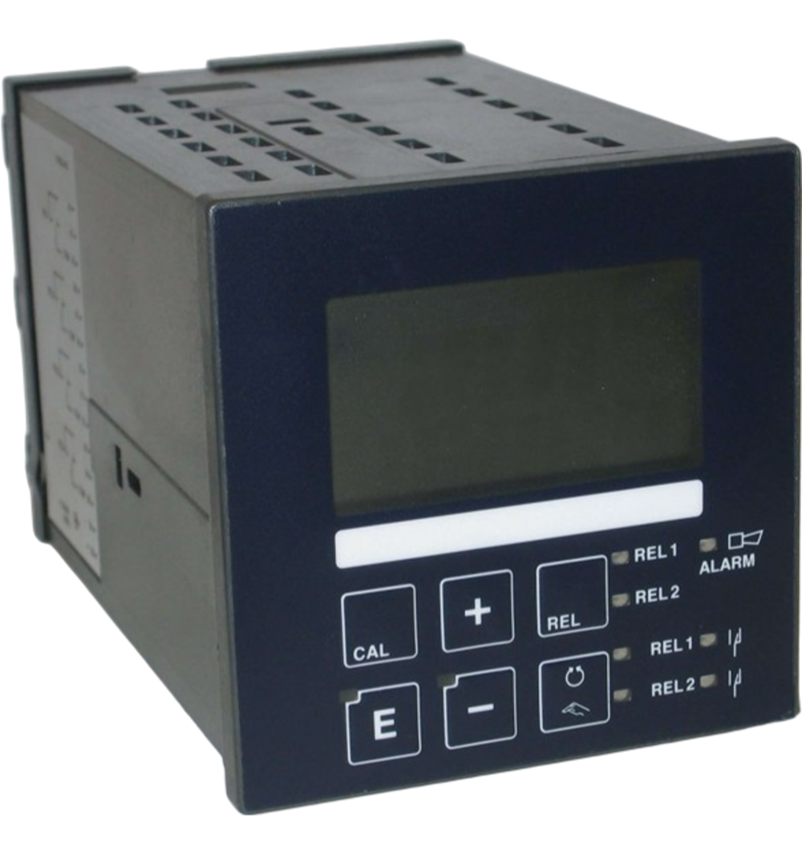

OPM 223
Application
 케미칼, 정수, 폐수, 공정수
Measurement Range
pH: 0...14 pH / ORP: -1500...1500 mV / Temp.: -20.0...150.0 ℃
Resolution
pH: 0.01 pH / ORP: 1.0 mV / Temp.: 0.1 ℃
Output
Analog or Digital
Operating Temperature
-10 to 55 ℃
Dimensions
Panel Mounted Instrument: 96 x 96 x 145 mm
OPM 253
Application
케미칼, 정수, 폐수, 공정수
Measurement Range
pH: -2...16 / ORP: -1500...1500mV / Temp.: -50.0...150.0℃
Resolution
pH: 0.01 pH / ORP: 1.0mV / Temp.: 0.1℃
Output
Analog or Digital
Operating Temperature
-10 to 55℃
Dimensions

Panel Mounted Instrument: 96 x 96 x 145 mm

Field instrument: 247 x 170 x 115 mm
