Applications	RO Feedwater Seawater Cooled Condenser Leak Detection Boiler Water Agricultural Water
Parameter	High Level Chloride
Measurement Range	75 ppm...1000 ppm/ ± 1999.9 mV
Limit of Detection
Temperature Range	-10...120 ˚C
Accuracy	± 10 % or 10 ppb ± (0.5 mV + 0.1 %) ± 0.5 ˚C
Pressure	0.55...6.89 bar (8...100 psig)
Resolution	2, 3 or 4 Digits
Calibration	DYN Calibration, Offline Calibration
Channel	1 Channel
Output	0 - 20 mA or 4 - 20 mA
Display	Custom backlit LCD with Temperature, Concentration, mV, Error Codes and Menu Driven Prompts
Dimension	Electronics: 144 x 144 x 187 mm Entire system: 650 x 450 x 270 mm
Electrical supply	100...120 V ; 200 mA / 200...240 V ; 100 mA / 50/60 Hz AC

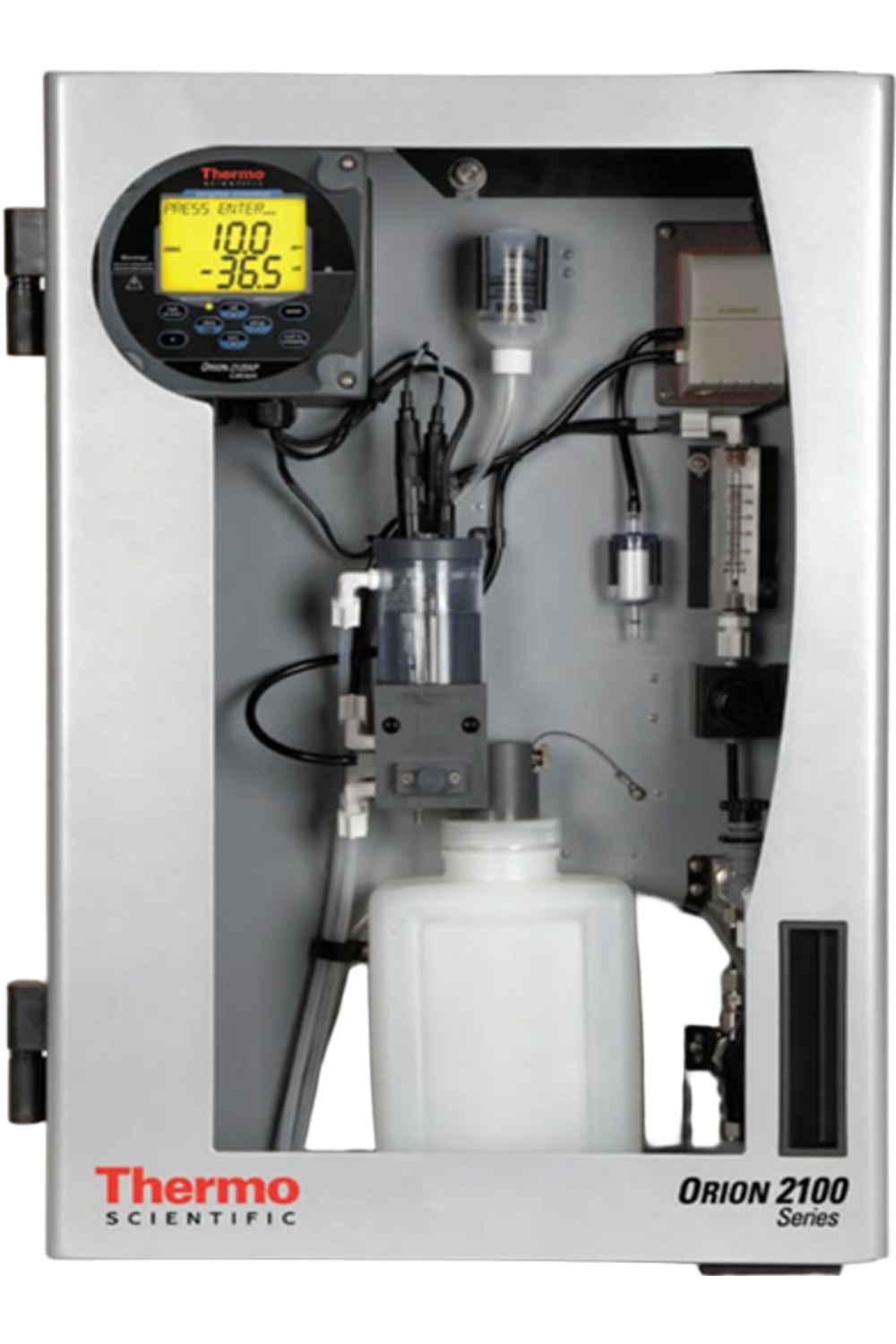

제품 소개

Application	농업 용수, 발전소, 반도체, 제지
Parameter	High Level Chloride
Measurement Range	75 ppm...1000 ppm/ ± 1999.9 mV
Calibration	DKA calibration, Offline calibration
Temperature Range	-10...120 ˚C
Accuracy	± 10 % or 10 ppb
Pressure	0.55...6.89 bar (8...100 psig)
