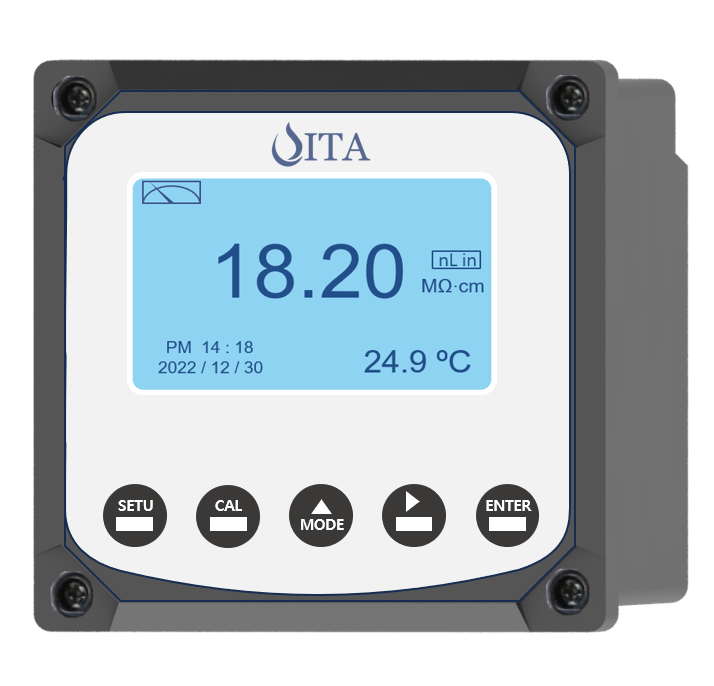

Application	RO, 냉각수, 공정수, 초순수
Measurement Range	Conductivity: 0...200.00 mS/cm Resistivity: 0...20.00 MΩ·cm Temperature: -30...130 °C
Cell Constant	0.008...19.99 cm-1
Resolution	0.01...1μS/cm / 0.1 °C
Ambient Temperature	0...50 ℃
Storage Temperature	-10...70°C
Analog Output	Analog 1: Isolated DC 0/4~20mA Main Measurement, max load 500Ω Analog 2: Isolated DC 0/4~20mA Temperature, max 500Ω (EC-4110) (ITCP-120)
Serial Interface	RS-485 (MODBUS RTU or ASCII) (ITCP-120D)
Dimensions	96 x 96 x 132 mm

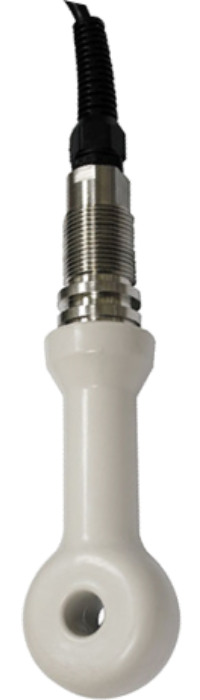

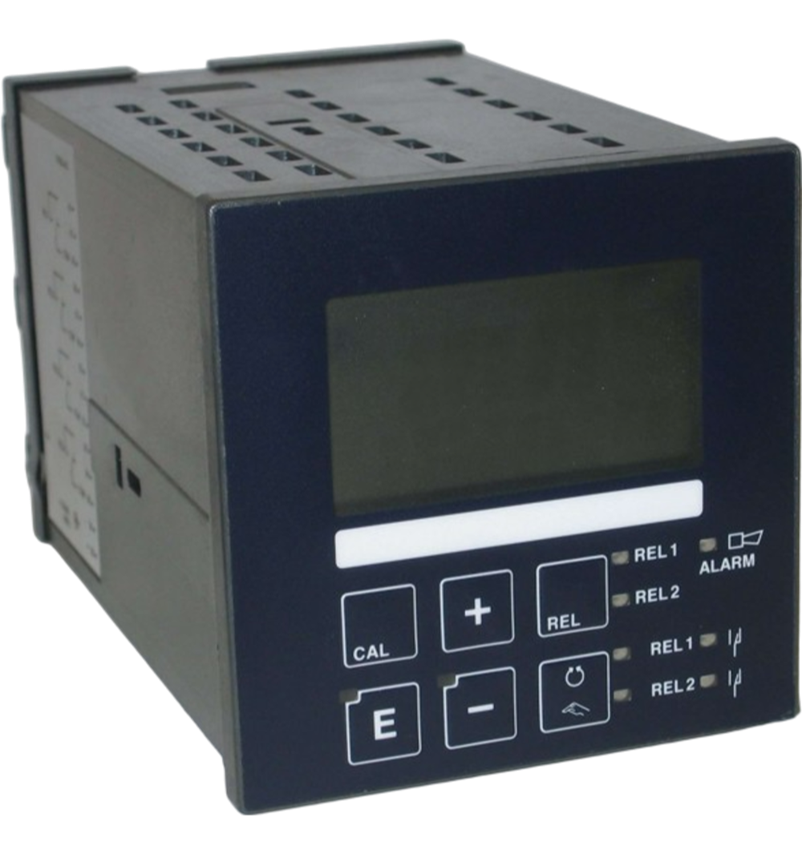

Application	화학공정, 폐수, 재이용수, 공정수

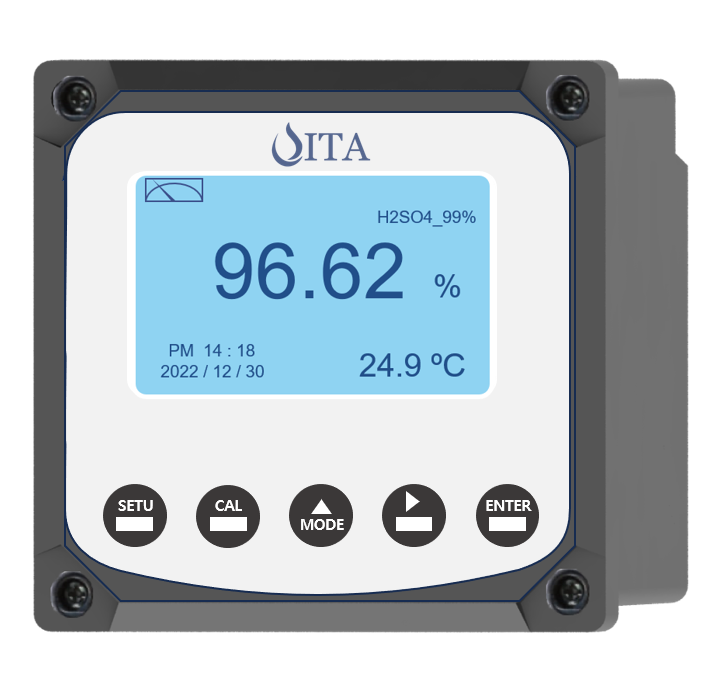

Measurement Range	Conductivity: 0...2000.00 mS/cm Salinity: 0.0...70.0ppt Concentration: (Range incl. different temp. condition) NaCl_28%: 0~28%, HCl_18%: 0~18%, HCl_39%: 22~39%, HNO3_30%: 0~30%, HNO3_96%: 35~96%, NaOH_24%: 0~24%, NaOH_50%: 15~50%, H2SO4_37%: 0~37%, H2SO4_88%: 28~88%, H2SO4_99%: 89~99%, H3PO4_35%: 0~35% User-Defined Concentration Table (9 temp. x 9 Concentration/Cond. matrix) Temperature: -30...200°C (PT1000 Optional)
Resolution	Conduct.: 0.1 μS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm, 1 mS/cm ICON (%): 0.01 Temp.: 0.1°C
Ambient Temperature	0...50 ℃
Storage Temperature	-20...70°C
Analog Output	Analog 1: Isolated DC 0/4~20mA Main Measurement, max load 500Ω Analog 2: Isolated DC 0/4~20mA Temperature, max 500Ω (EC-4110) (ITCP-120)
Serial Interface	RS-485 (MODBUS RTU or ASCII) (ITCP-120D)
Dimensions	96 x 96 x 132 mm
