제품 소개

PRODUCT INFO



Germany




Static Housing 0...6 bar

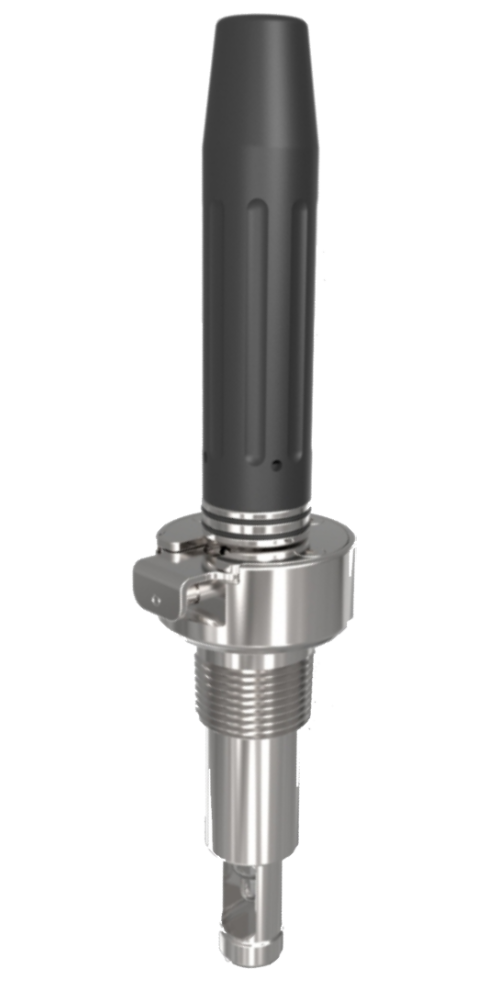

EXstatic 310
Application
0...6 bar
Material
Stainless Steel 1.4404 / 316L Ra0,8
Sealing MaterialEPDM / FDA / USP VI or FPM (Viton)
Process Connection
G1 1/4" (DN25) O-ring-position 25 mm
Process Temperature
-10…140 °C
Immersion Length70 mm under Process Connection

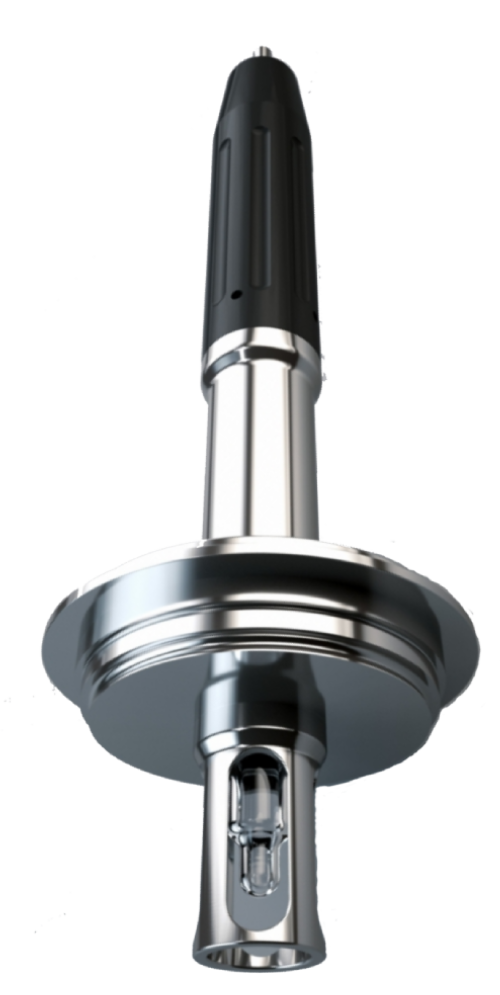

EXstatic 312
Application
0...6 bar
Material
Stainless Steel 1.4404 / 316L Ra0,8
Sealing MaterialEPDM / FDA / USP VI or FPM (Viton)
Process Connection
Varivent N DN40-125 / NEUMO BioControl D50
Process Temperature
-10…140 °C
Immersion Length40mm under Process Connection

Manual Housing 0...6 bar

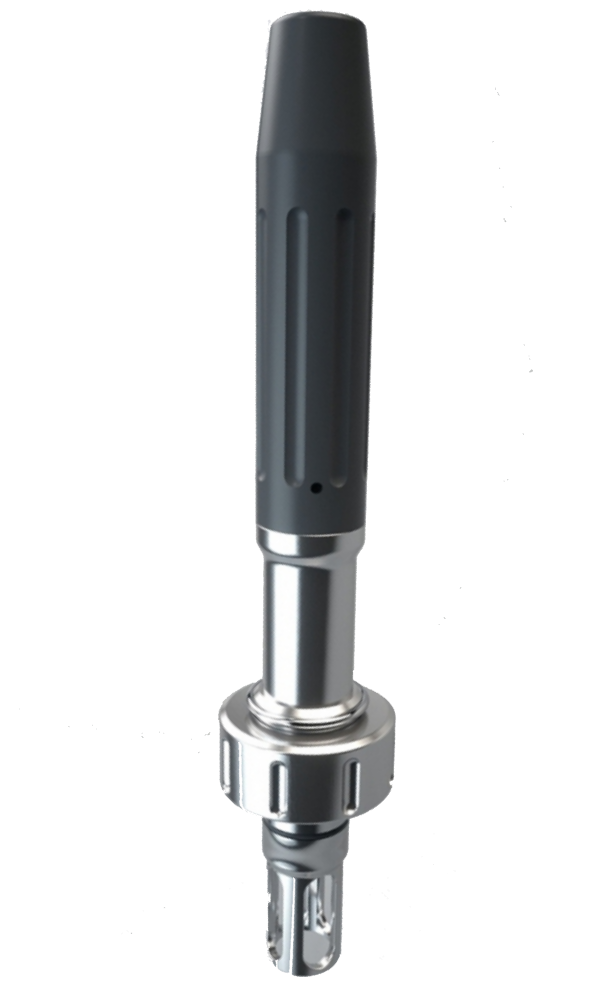

EXstatic 850M
Application
0...6 bar
Material
Stainless Steel 1.4404 (316L) < Ra 0.78µm; PP
Sealing MaterialEPDM / FPM (Viton)
Process Connection
Thread NPT 1" / Thread G 1" / Ingold DN25 G 1¼"
Process Temperature
-10…140 °C
Immersion Length76 mm with Protection Cage Extended

0...10 bar Application

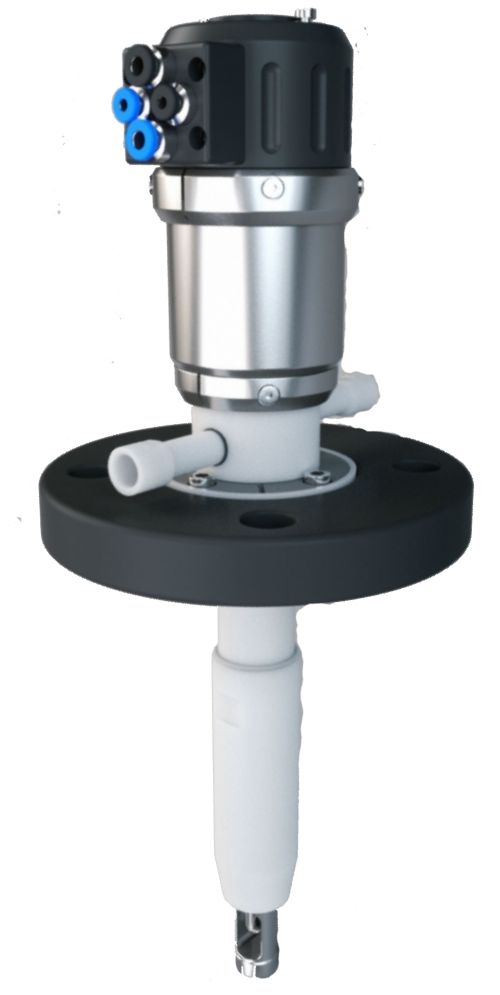

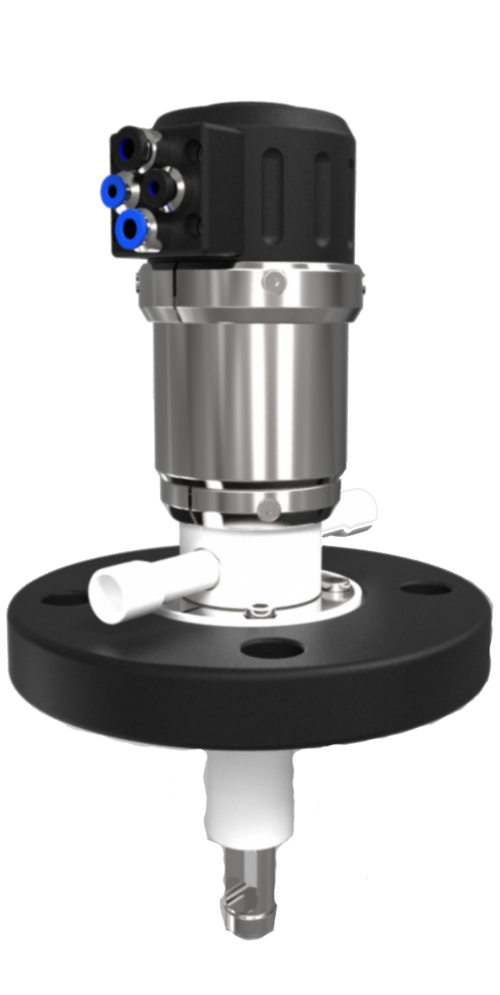

Extract 820M / 820
Application
0...10 bar
Material

PP / PEEK / PVDF, Alloy C22

Sealing Material

EPDM / FPM (Viton) / FFKM (Kalrez)

Process Connection
Flange DN50 PN16 / ANSI 2“ 150lbs / MNPT 1 ¼“
Process Temperature
-10…140 °C
Immersion Lengthup to 94 mm
Extract 821M / 821
Application
0...10 bar
Material

PVDF / Alloy C22, PEEK

Sealing Material

EPDM / FPM (Viton) / FFKM (Kalrez)

Process Connection
Flange DN50 PN16 / ANSI 2“ 150lbs
Process Temperature
-10…140 °C
Immersion Lengthup to 194 mm

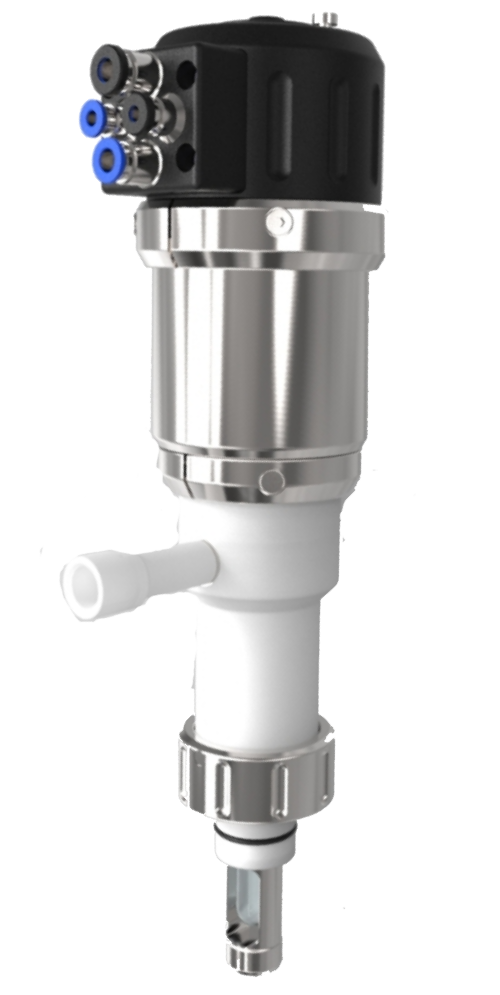

Extract 825M / 825
Application
0...10 bar
Material

PP, PVDF, PEEK

Sealing Material

EPDM / FPM (Viton) / FFKM (Kalrez)

Process Connection
G1 1/4" (DN25)
Process Temperature
-10…140 °C
Immersion Lengthup to 70 mm

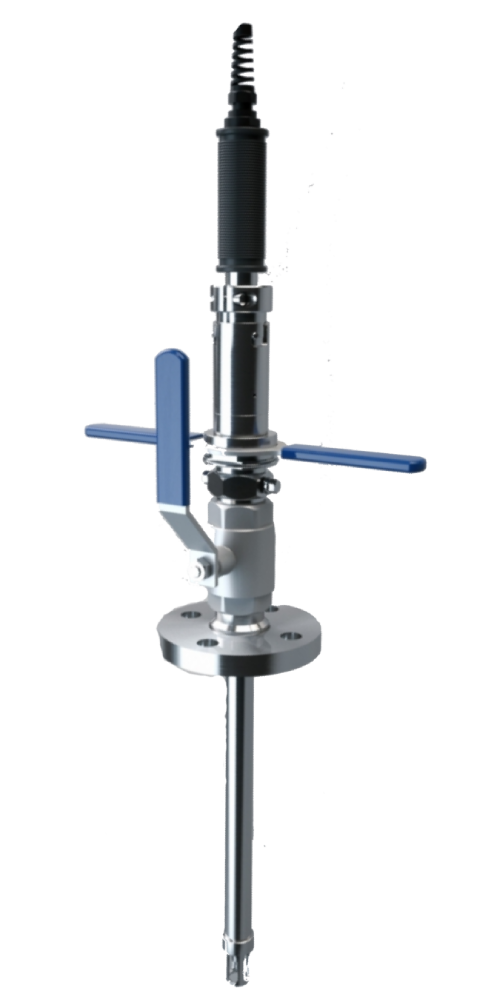

Extract 840M
Application
0...12 bar
Material

Stainless Steel 1.4404 /316L

Sealing Material

EPDM / FPM (Viton) / FFKM (Kalrez)

Process Connection
Flange DN32 / ANSI 1 ¼" / Thread G1 ¼" / MNPT1 ¼"
Process Temperature
-10…130 °C
Immersion Length300 mm / 700 mm nominal

0...16 bar Application

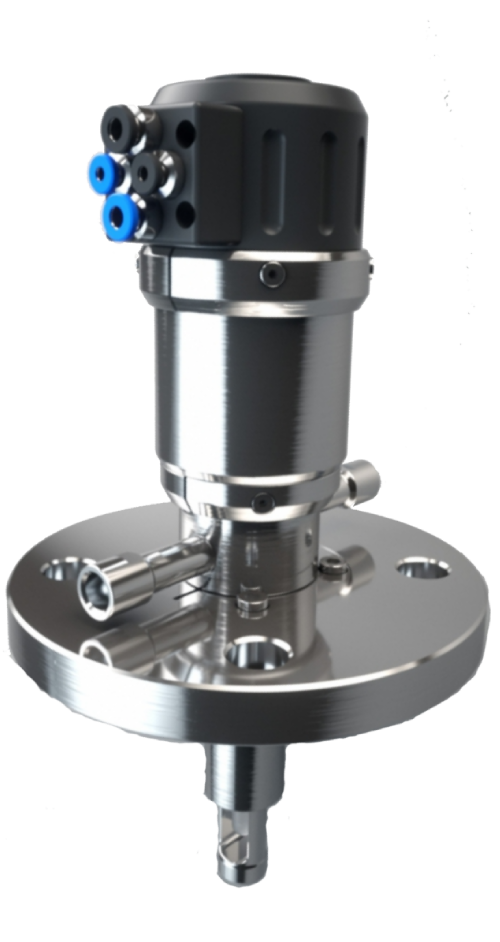

Extract 810M / 810
Application
0...16 bar
Material

Stainless Steel 1.4404 /316L, Alloy C22

Sealing Material

EPDM / FPM (Viton) / FFKM (Kalrez)

Process Connection
Flansch DN32 / DN40 / DN50 / ANSI 1 ¼“ / ANSI 1 ½" / ANSI 2", MNPT 1 ¼“ /
TriClamp 1- 1.5“ / TriClamp 2"
Process Temperature
-10…140 °C
Immersion Lengthup to 107 mm
Extract 811M / 811
Application
0...16 bar
Material

Stainless Steel 1.4404 /316L, Alloy C22 (2.4602)

Sealing Material

EPDM / FPM (Viton) / FFKM (Kalrez)

Process Connection
Flange DN50 PN16 / DN40 PN16 / ANSI 2“ 150lbs / ANSI 1 ½" 150lbs
Process Temperature
-10…140 °C
Immersion Lengthup to 207 mm

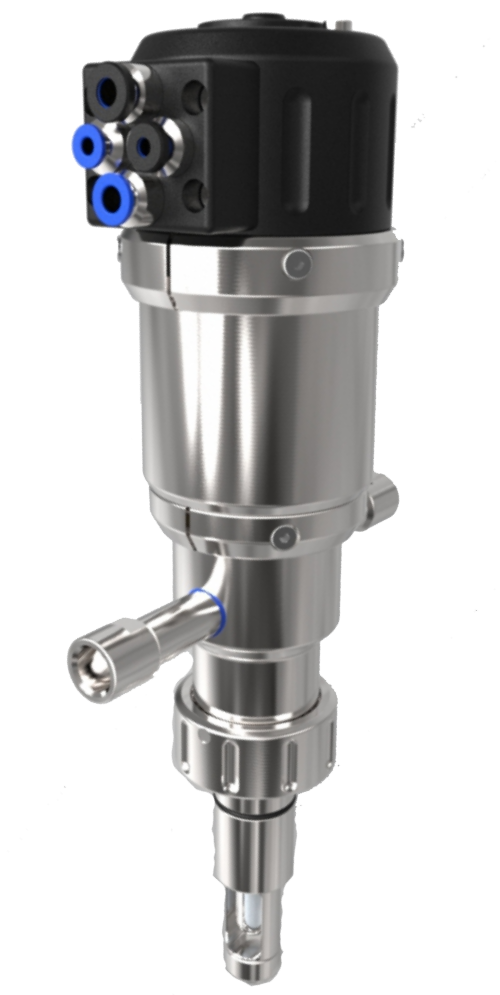

Extract 815M / 815
Application
0...16 bar
Material

Stainless Steel 1.4404 /316L, Alloy C22 (2.4602)

Sealing Material

EPDM / FPM (Viton) / FFKM (Kalrez)

Process Connection
G1 1/4" (DN25)
Process Temperature
-10…140 °C
Immersion Lengthup to 90 mm

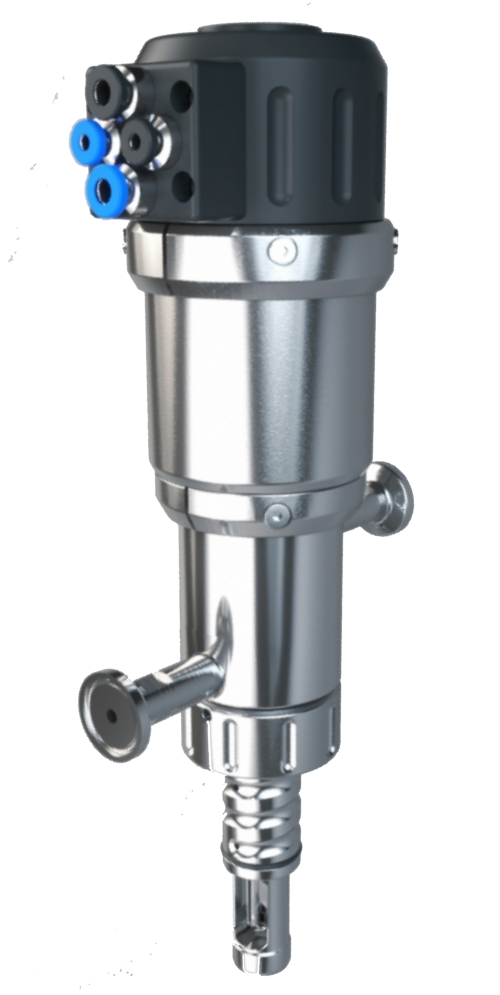

Extract 830M / 830
Application
0...16 bar
Material

Stainless Steel 1.4404 /316L

Sealing Material

EPDM/FEP (FDA USP VI), FPM (Viton)/FEP

Process Connection
Ingold DN25 G1¼", HyCIP® OP25/50/55mm, TriClamp 1-1.5“ / TriClamp 2" /
Varivent N DN40-125 / Neumo BioControl D50 / DIN11851 DN50
Process Temperature
-10…140 °C
